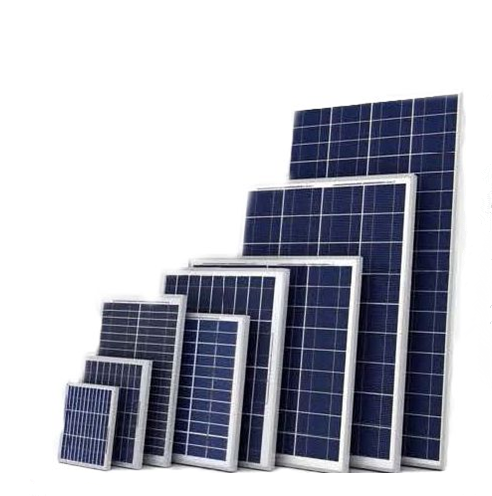

Classical Glass Solar Panel
* High efficiency solar modules based on leading innovative photovoltaic technologies
* Power ranges from 10W~550W
* Suit for on&off grid solar system
* Pre-drilled holes included for grounding
* 25 years lifespan
* Power ranges from 10W~550W
* Suit for on&off grid solar system
* Pre-drilled holes included for grounding
* 25 years lifespan
SUNGREE solar modules are optimally manufactured and adjusted to meet the needs of the current market;
scientifically designed module dimension makes the installation simple and easy.
Our continuous efforts in quality assurance system and certifications the international authentication institutions
of our products demonstrate commitment to product quality and customer requirements.
|
MODULE CHARACTERISTICS |
1. High efficiency monocrystalline/polycrystalline silicon solar cells.
2. High transmission low iron tempered glass, strong mechanical resistance.
3. Standard waterproof junction box, with bypass diode.
4. High endurance to different atrocious weather.
Specification of Sungree main models
| Model | Pmax(W) | Vmp（V) | Imp（A） | Voc（V) | Isc（A） | Cell Qty | Array | Panel size | Weight(kg) |
| SG-M540W/36 | 540W | 41.62 | 12.98 | 49.55 | 13.89 | 144 | 6*24 | 2279*1134*35mm | 28 |
| SG-M450W/30 | 450W | 34.67 | 12.98 | 41.25 | 13.89 | 120 | 6*20 | 1909*1134*35mm | 25.8 |
| SG-M400W/36 | 400W | 39.60 | 10.10 | 46.60 | 10.91 | 72 | 6*12 | 1980*990*35mm | 24 |
| SG-M330W/30 | 330W | 33.28 | 9.92 | 39.16 | 10.62 | 60 | 6*10 | 1650*990*35mm | 19.5 |
| SG-M320W/30 | 320W | 32.18 | 9.95 | 37.88 | 10.68 | 60 | 6*10 | 1650*990*35mm | 19.5 |
| SG-M300W/27 | 300W | 30.10 | 9.97 | 34.95 | 10.71 | 54 | 6*9 | 1480*990*35mm | 17.5 |

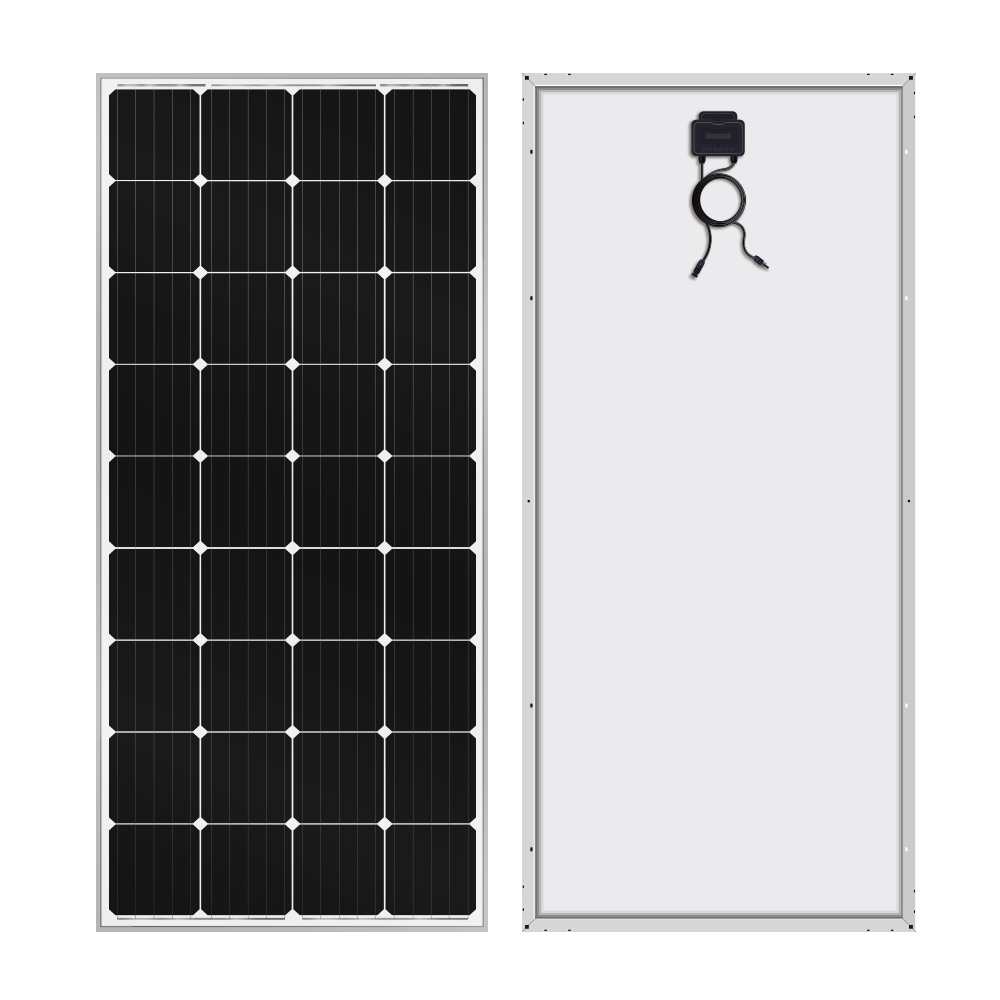

| SG-M200W/18 | 200 | 19.80 | 10.10 | 23.98 | 10.86 | 36 | 4*9 | 1500*680*35mm | 10 |
| SG-M150W/18 | 150 | 19.80 | 7.58 | 23.98 | 8.14 | 36 | 4*9 | 1155*680*35mm | 9 |
| SG-M130W/18 | 130 | 19.80 | 6.57 | 23.98 | 7.06 | 36 | 4*9 | 1000*680*35mm | 8 |
| SG-M120W/18 | 120 | 19.20 | 6.25 | 22.26 | 6.72 | 36 | 4*9 | 1000*680*35mm | 8 |

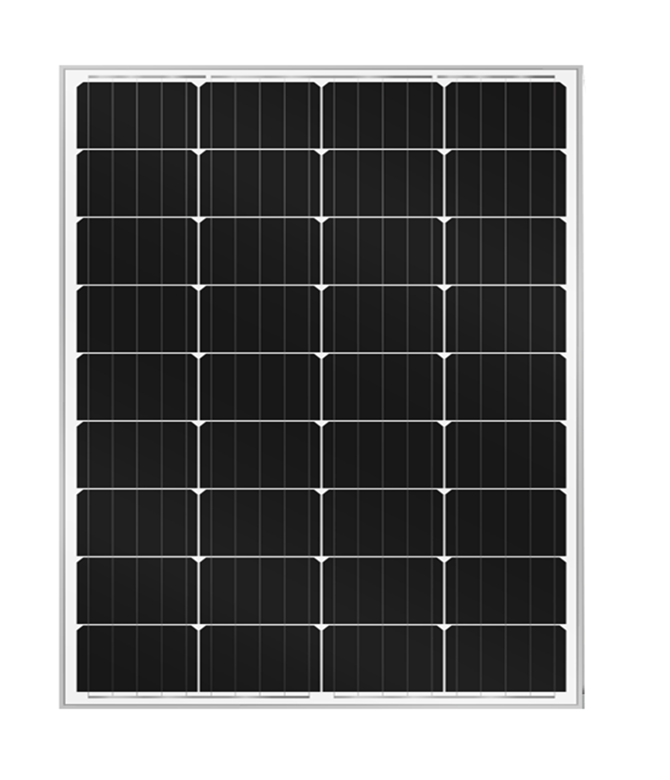

| SG-M100W/18 | 100 | 19.80 | 5.05 | 23.98 | 5.43 | 36 | 4*9 | 780*680*30mm | 6 |
| SG-M90W/18 | 90 | 19.20 | 4.69 | 22.26 | 5.04 | 36 | 4*9 | 780*680*30mm | 6 |
| SG-M80W/18 | 80 | 19.20 | 4.17 | 22.26 | 4.48 | 36 | 4*9 | 650*680*30mm | 5.5 |
| SG-M70W/18 | 70 | 19.20 | 3.65 | 22.26 | 3.92 | 36 | 4*9 | 620*680*30mm | 5.2 |
| SG-M60W/18 | 60 | 19.20 | 3.13 | 22.26 | 3.36 | 36 | 4*9 | 550*680*30mm | 5 |
| SG-M50W/18 | 50 | 19.80 | 2.53 | 23.98 | 2.71 | 36 | 4*9 | 420*680*30mm | 5 |
| SG-M40W/18 | 40 | 18.60 | 2.15 | 21.96 | 2.31 | 36 | 3*12 | 540*520*25mm | 4 |
| SG-M30W/18 | 30 | 18.60 | 1.61 | 21.96 | 1.73 | 36 | 3*12 | 430*520*25mm | 3.8 |
| SG-M20W/18 | 20 | 18.60 | 1.08 | 21.96 | 1.16 | 36 | 2*18 | 420*350*17mm | 3 |
| SG-M15W/18 | 15 | 18.60 | 0.81 | 21.96 | 0.87 | 36 | 2*18 | 350*350*17mm | 1.5 |
| SG-M10W/18 | 10 | 18.60 | 0.54 | 21.96 | 0.58 | 36 | 2*18 | 280*350*17mm | 1.1 |
